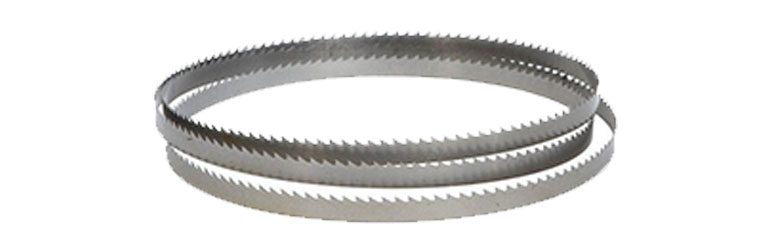

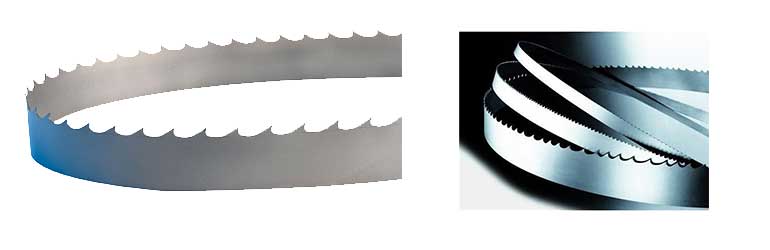

BI-Metal Blade

M-42

Quality performance M42 HSS tooth edge with hi-chrome baking maximizing fatigue resistance. Positive rake tooth from for easier penetration


Materials

structual steel, tempered steel, spring steel, low alloyed hot-work steel, nitride steel, high alloyed hot-work steel, unalloyed tool steel, cold-work steel, high-speed steel, cast iron, light rust/acid-resist steel, heavy rust/acid-resist steel, heat-resist steel, aluminum, copper, brass, carbon(soft)



Width x Thickness TPI
0.75/1.25 1.0/1.4 1.4/2 2/3 3/4 4/6 5/8
27 x 0.90 ● ● ● ●
27 x 1.10 ● ●
34 x 1.10 ● ● ● ● ●
41 x 1.30 ● ● ● ●
54 x 1.30 ● ● ● ●
54 x 1.60 ● ● ● ● ● ●
67 x 1.60 ● ● ● ● ● ●
80 x 1.60 ● ● ● ● ●
100 x 1.60 ●

M-51

Propriertary tooth edge design combined with hi-chrome content body optimizes bimetal blade performance and extends fatigue life on difficult to cut materials.


Materials

structual steel, tempered steel, spring steel, low alloyed hot-work steel, nitride steel, high alloyed hot-work steel, unalloyed tool steel, cold-work steel, high-speed steel, cast iron, light rust/acid-resist steel, heavy rust/acid-resist steel, heat-resist steel, nickel-base alloy, aluminum-bronze, titanium alloy



Width x Thickness TPI
0.7/1.0 1.0/1.4 1.4/2.0 2/3 3/4 4/6
27 x 0.90 ● ●
34 x 1.10 ● ● ●
41 x 1.30 ● ● ● ●
54 x 1.60 ● ● ● ●
67 x 1.60 ● ● ●
80 x 1.60 ● ● ●
